Aluminum painted emboss coil

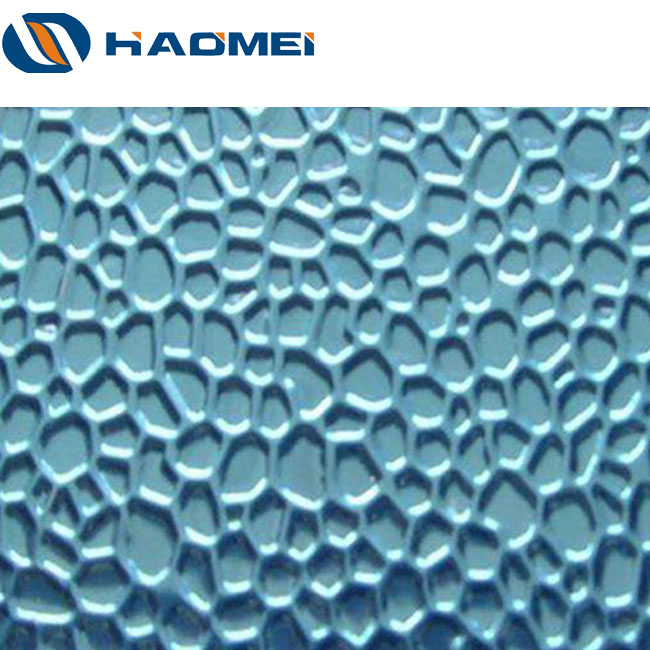

An aluminum painted emboss coil is a pattern aluminum emboss plate coil with stucco, diamond, ripple or hammer patterns formed on the surface after calendering (roller with pattern patterns) and coating (roller coating, spraying, etc.) processing on the basis of smooth aluminum coils. It is widely used in packaging, construction, curtain wall, decoration and so on. Haomei colour emboss aluminum coil products include fluorocarbon aluminium embossed painting coils (plates), polyester aluminium embossed painting coils (plates); peelable aluminium embossed painting coils (plates); nano anti-dirty self-cleaning coated aluminum coils (plates) ); high scratch-resistant coated aluminum coil (plate); painting aluminium checker plate (rolls), etc. Alloys include 1100, 3003, 3004, 3005, 3105, 5182, 5002, 5005, etc., the coating thickness is 0.07mm-2.0mm, and the width 30mm-1600mm. The embossed aluminum painted coil can be divided into pieces, strips, and embossing.

Alloy: 1060, 1100, 3003, 3004, 3105, 5005, 5182, 5052

Width： 50mm-1600mm

Aluminum coil thickness： 0.018mm-3.0mm

Coating thickness： 14-20micron

Paint: PE, PVDF

Coil weight： 1.0-3.0 ton/roll

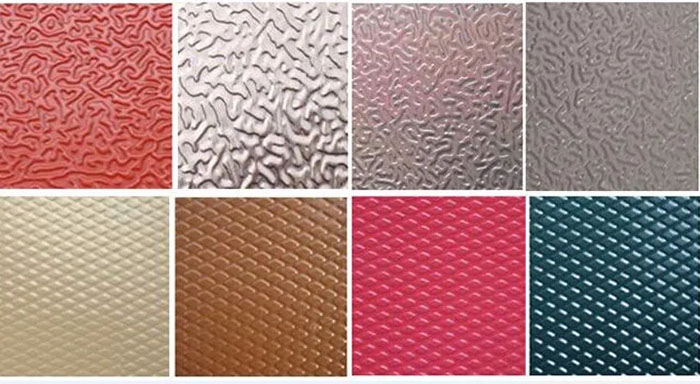

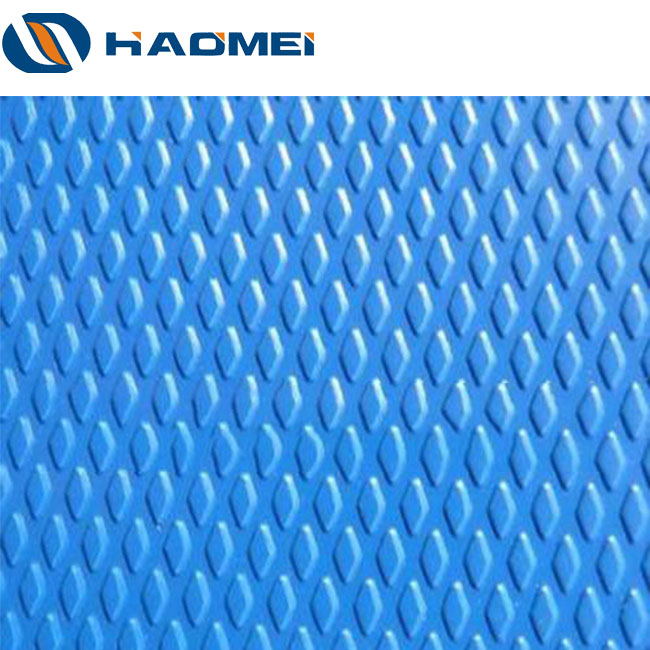

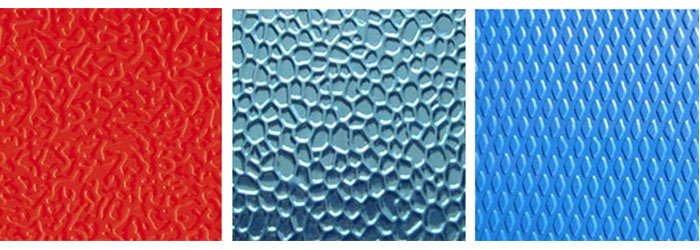

Surface treatment: polyester coating, fluorocarbon coating, embossing (diamond embossing, orange peel embossing)

Diameter: 150mm, 405mm, 505mm

Conventional colors: white, metallic, black, brown, gold, gray series (can be adjusted according to customer requirements)

Application and Classification

Emboss aluminum roof coil

Embossed aluminum coil for pipe insulation

Aluminum emboss plate coil for packaging

Colour emboss aluminum coil for curtain walls

Painting aluminium checker plate for interior and exterior decoration

Quality Control

Superior raw aluminium coil rolls

Paints from PPG group

Large-scale super-width aluminum coil coating line, maximum width 2400mm, line speed 30m/s

Slitting & cutting available

Surface: Bright color, no scratches, oil stains, roll marks, etc., neat trimming, no burrs, uniform coating thickness, no color difference

20-year supplier and over 3 decades manufacturer. Welcome to send inquiries!
