Alloy: 5754 aluminium
Thickness: 0.2mm-8mm
Application fields: high-speed railway noise barrier, tank car body material, high-grade alloy doors and windows, etc.
enquiryAlloy: 5754 aluminum roll
Material status: F, O, h111, H12, h14, H16, h18, H22, H24, H26, h28, H32, H34, H36, h38
Thickness (mm): 0.2-8
Width (mm): 100-2650
Length (mm): C
Typical products: high-speed railway noise barrier, tank car tank material, high-grade alloy doors and windows, etc

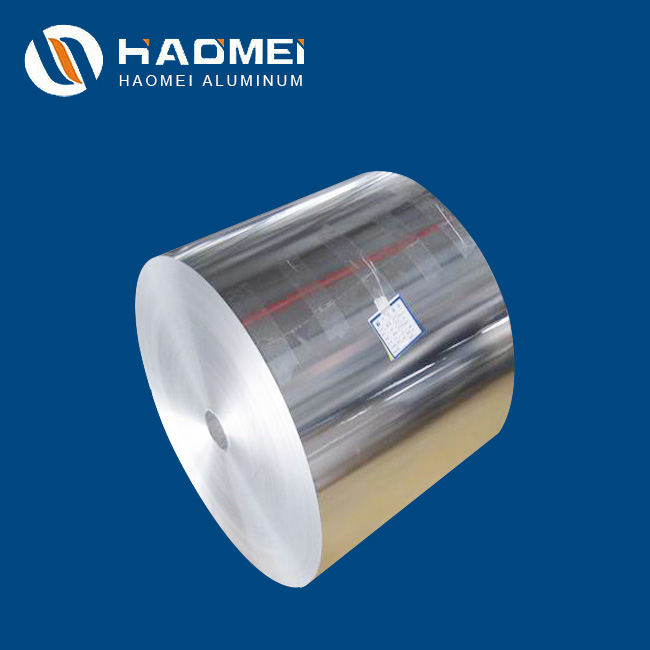

5754 aluminum coil is a member of Al-Mg antirust aluminum, which has the characteristics of medium strength, good corrosion resistance, weldability and easy processing and forming. It is a typical alloy in Al Mg system alloy. Alloy 5754 aluminium with different heat treatment status is the main material used in automobile manufacturing industry (car doors, molds, sealing) and can making industry (tank body material). Aluminium 5754 grade material is widely used in welding structures, storage tanks, pressure vessels, ship structures and marine facilities, transportation tanks, as well as industrial products requiring excellent processing performance, excellent corrosion resistance, high fatigue strength, high weldability and medium static strength. We supply aluminium 5754 grade material of 5754 h22, al 5754 h111, alloy 5754, al 5754 h22, 5754 h14, 5754 h114 and ams 5754 material. Aluminum coil 5754 is 0.2mm to 8mm thick.
Chemical composition of 5754 aluminium alloy
Si | Cu | Mg | Ti | Zn | Mn | Cr | Al |
0.40 | 0.10 | 2.6~3.6 | 0.15 | 0.2 | 0.50 | 0.30 | remains |
Mechanical properties
Tensile strength σ B (MPA): 165-265

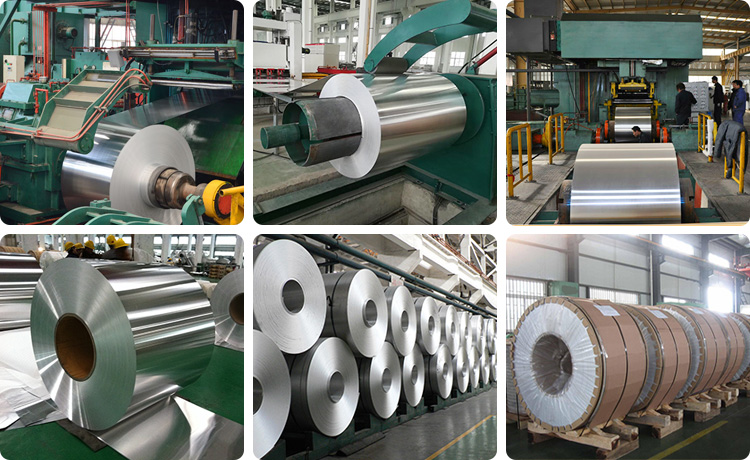

Typical production process: 25% ~ 35% cold working rate is reserved for hot-rolled plate, thickness of intermediate annealing and cold-rolled finished product, stable annealing temperature 140 ℃ ~ 150 ℃, holding time 1H.
The density of 5754 aluminum coil is 0.0000028, 5754. Coil 5754 aluminium alloy is used in the fields of high-speed railway sound barrier, tank car material, high-grade alloy doors and windows, aluminum for construction, aluminum for transportation, aluminum for automobile, etc.
Aluminum sheet plate 5754 specification:
Thickness: 3mm, 4mm, 6mm, 8mm
Width: 1000mm \ 1220mm \ 1500mm
Length: 2000mm, 2440mm, 3000mm, 6000mm
Standard size of aluminum plate: 1220 * 2440mm
Specification of 5754 aluminum bar:
Diameter: 3.0mm-500mm
Length: 2000mm-6000mm
Standard size: 2500mm
5754 wire diameter: 0.1mm-20mm
Length: such as 0.1mm * C (coil wire)
Standard size of aluminum wire: 10kg-200kg
5754 wire diameter: 0.1mm-20mm
Length: such as 0.1mm * C (coil wire)
Standard size of aluminum wire: 10kg-200kg
