» Aluminum Profile

    • Aluminium Square Bar

    CATEGORY AND TAGS:
    Aluminum Profile , , , ,

    Alloy: 6061/6082
    Temper: T4, T3511, T6, T8511
    Side length: 10 -220mm
    Normal length: 3000mm, 4000mm, 6000mm

    Downloadenquiry
    • Specifications
    • Pictures
    • Factory
    • Video

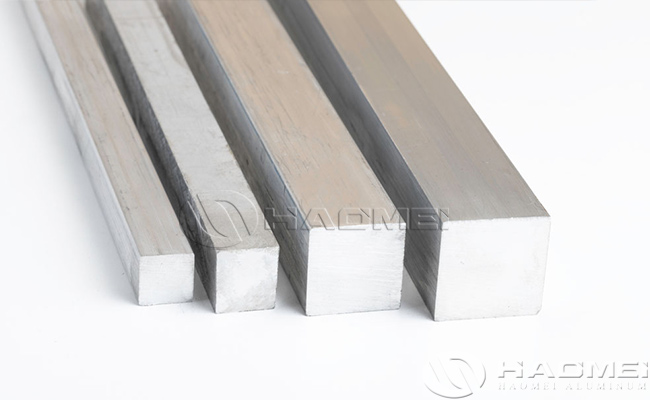

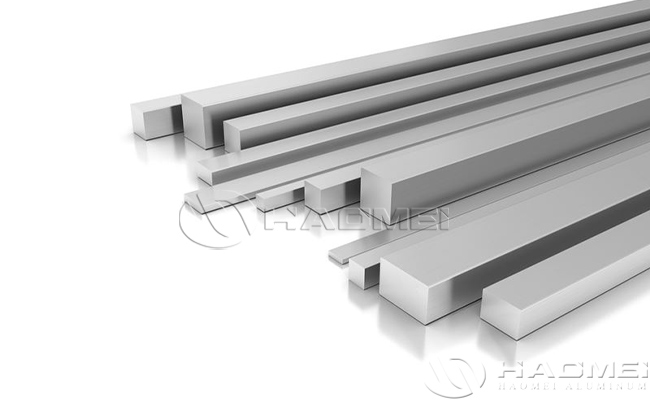

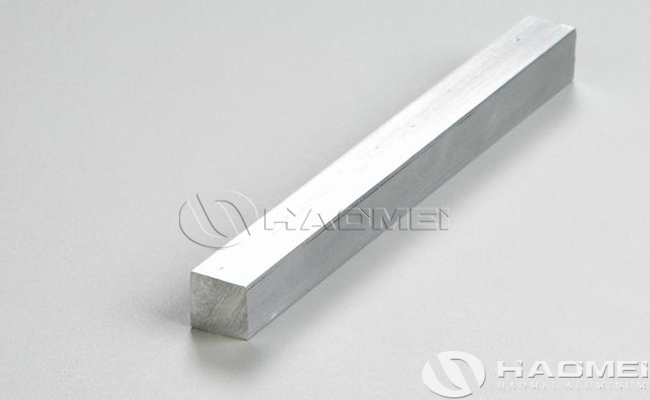

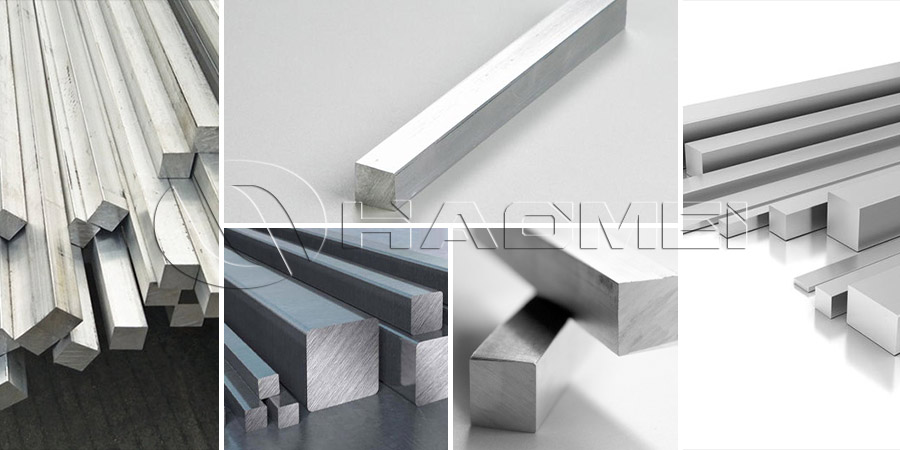

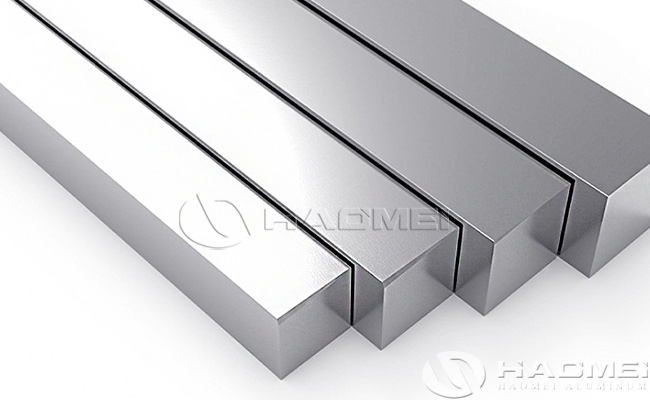

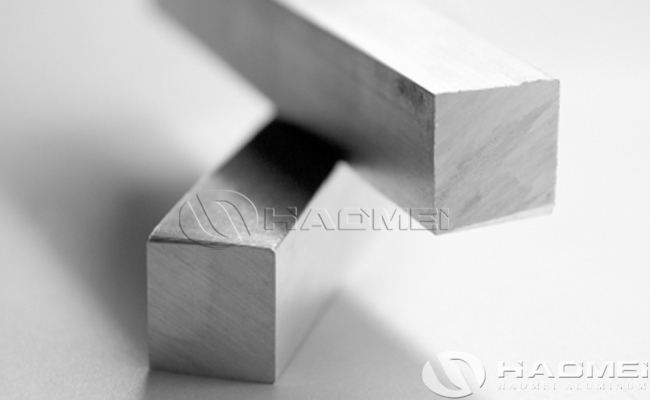

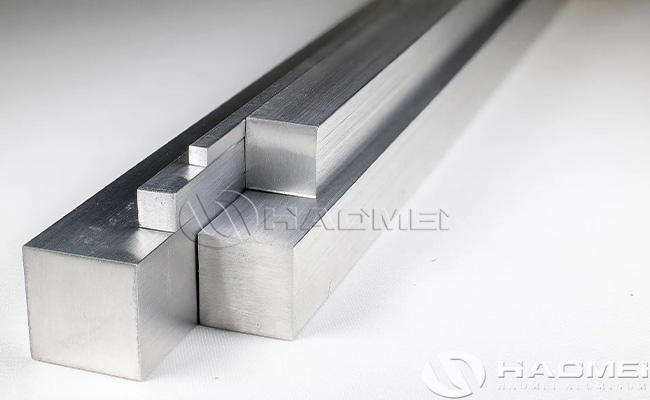

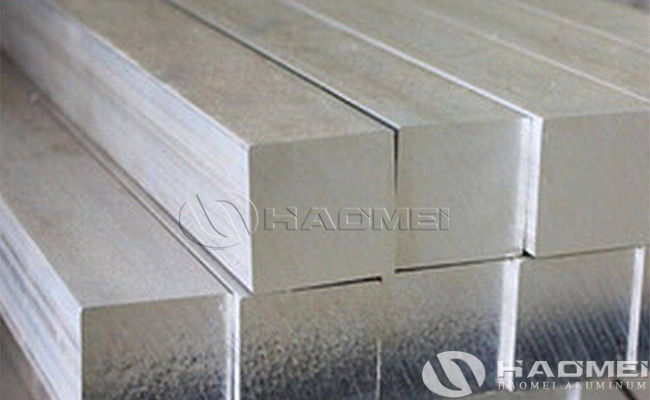

    Aluminum square bars are a core component of many structural parts. Their shape is perfect for a wide variety of uses. 6061-T6 Aluminum square bars are also great alternatives to the use of heavier metals like steel since aluminum is incredibly lightweight. Additionally, aluminum is highly corrosion-resistant, and 6061 aluminum is especially versatile and heat-treatable.

    Specs of Aluminium Square Bar:

    square_bar

    Specification
    Alloy 6061/6082
    Temper O, T4, T3511, T6, T8511
    Side length mm 10 -220mm
    Normal length 3000mm, 4000mm, 6000mm
    Standard GBT 26006-2010, EN 755, EN754
    aluminum square rod metric size range Min10x10mm，Max220x220mm
    aluminum square rod inch size range Min0.375″x0.375″，Max9″x9″
    aluminum square rod length Max 6m, Fix & Cut Length or Customized
    Surface treatment Anodizing, electrophoretic coating, powder coating, etc.
    Production Process Cold finish, Extruded



    Commonly used sizes:8x8mm、10x10mm、12x12mm、14x14mm、15x15mm、16x16mm、18x18mm、20x20mm、22x22mm、25x25mm、28x28mm、30x30mm、32x32mm、35x35mm、40x40mm、45x45mm、50x50mm

    aluminum square bar physical properties

    6061-T6 6061-T651 6061-T6511
    Tensile Strength 270-310 MPa 270-320 MPa 270-290 MPa
    Shear Strength 210MPa 210 MPa 170MPa
    Elastic Modulus 69GPa 69GPa 69GPa
    Brinell Hardness 93 93 –
    Elongation at Break 10% 11% 9%

    Why Choose Haomei Aluminum?

    - Specialization: We excel in providing top-grade marine grade aluminum profiles.
    - Diverse Options: Explore a variety of other grades to suit your specific project requirements.
    - Value-added Services: Benefit from efficient sourcing, quick turnaround, and services like precision saw cutting for seamless project integration.
    - Reliability: As your trusted aluminum profile distributor, we are committed to meeting your needs promptly and efficiently.
    - Certified: Haomei Aluminum is an ISO-certified, CCS,DNV, LR, KR, BV, RINA, and ABS cerificated, family-owned, and operated provider of high-quality specialty metals and alloys.
