Color Coated Aluminium

» Color Coated Aluminium

    • 8011 Color Coated Aluminum Coil

    CATEGORY AND TAGS:
    Color Coated Aluminium

    Model Number: 8011

    Application: ACP, wall cladding, roofing, ceiling,ect.

    Thickness: 0.02mm-3.0mm

    Width: 40-1600mm

    Paint: AC/PE /PVDF/HDPE /FEVE

    Thickness Of Paint: 8-35 micron

    enquiry
    • Specifications

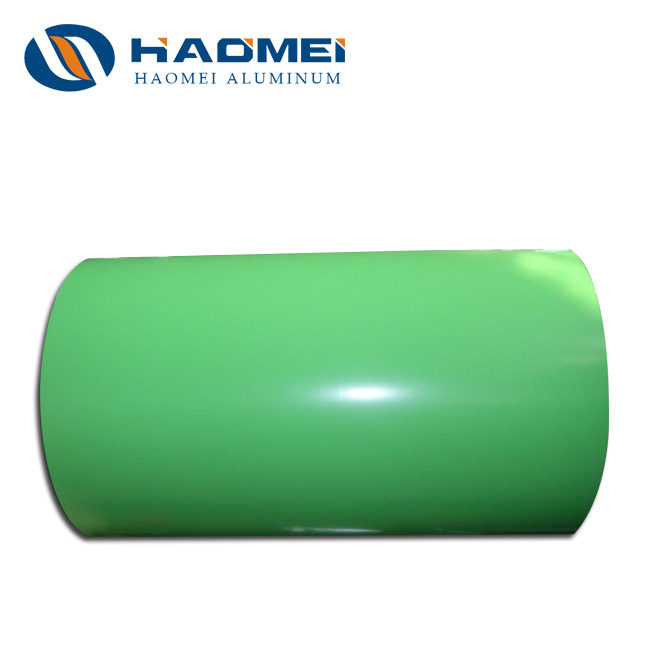

    8011 Color Coated Aluminum Coil
    Temper H16,H26
    Thickness From 0.02mm to 3.0 mm
    Width From 40- 1600 mm
    Diameter



    		 Standard dia:1100mm
    Interior dia:150mm, 405mm,505mm
    Weight 2.0-3.0 Tons/coil
    Coating PVDF, PE or AC
    Surface Embossed, mill finish, coated
    Color RAL or Customized
    Gloss 10-90%(EN ISO-2813:1994)
    Coating Thickness



    		 PE: more than 18 micron
    PVDF: more than 25 micron
    Coating Hardness(pencil resistance) More than 2h
    Coating Adhesion 5J(EN ISO-2409:1994)
    Impact Resistance No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
    Flexibility (T-bend) ≤2T
    MEK Resistance More than 100

    CHEMICAL COMPOSITION
    Grade Si Fe Cu Mn Mg Cr Zn
    8011 0.05-0.9 0.6-1.0 0.1 0.2 0.05 0.05 0.1

    8011 Color Coated Aluminum Coil, Color Coated Aluminum Coil, coated aluminum coil
