Aluminum Tread Plate

» Aluminum Tread Plate

    • 5754 aluminum tread plate

    CATEGORY AND TAGS:
    Aluminum Tread Plate ,

    Temper: H12, H22, H32, H14, H24, H34, T4, T6
    Thickness (mm): 1.2-8.0
    Width (mm): 100-1850
    Length (mm): Coil or sheet (500-16000)

    enquiry
    • Specifications
    • Properties
    • Advantages
    • Application

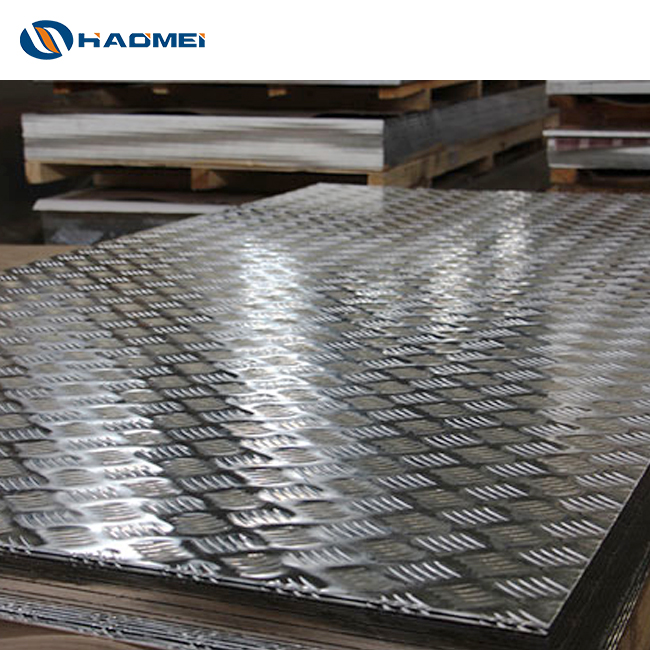

    5754 aluminum tread plate is made of 5754 aluminium alloy which is featured by medium strength, good anti-rust property, nice welding performance and easy forming. 5754 aluminum plate contains 3%-5% magnesium known by excellent erosion resistance.

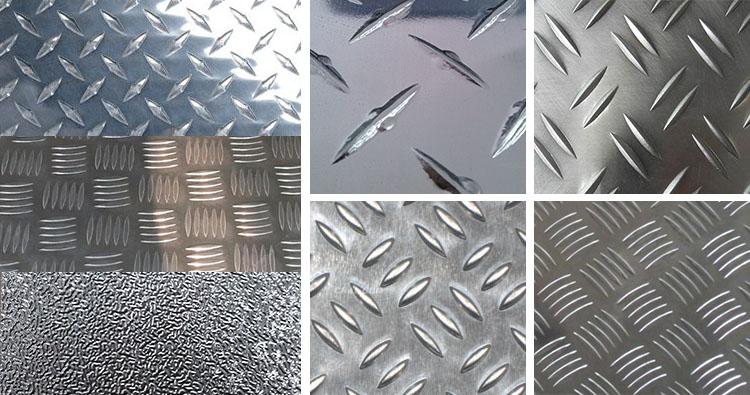

    5754 aluminum tread plate patterns

    Temper H12, H22, H32, H14, H24, H34, T4, T6
    Thickness (mm) 1.2-8.0
    Width (mm) 100-1850
    Length (mm) Coil or sheet (500-16000)
    Price Alu ingot price + manufacturing cost
    MOQ 1 ton
    Pattern Diamond, 5 bar, 1 bar, 3 bar, 4 bar

    Chemical composition

    Si Cu Mg Ti Zn Mn Cr Al
    0.40 0.10 2.6-3.6 0.15 0.2 0.50 0.30 rest

    Mechanical properties

    Tensile Strength σb (MPa) Yielding Strength σb (MPa) Elongation
    190～240 ≥80 ≥1.2



    1. Haomei is a leading aluminium sheet manufacturer in Henan, China. Customization of 5754 aluminum checker sheet is available.

    2. The impurities are strictly controlled.

    3. Our 5754 aluminium tread plate is easy to form and process.

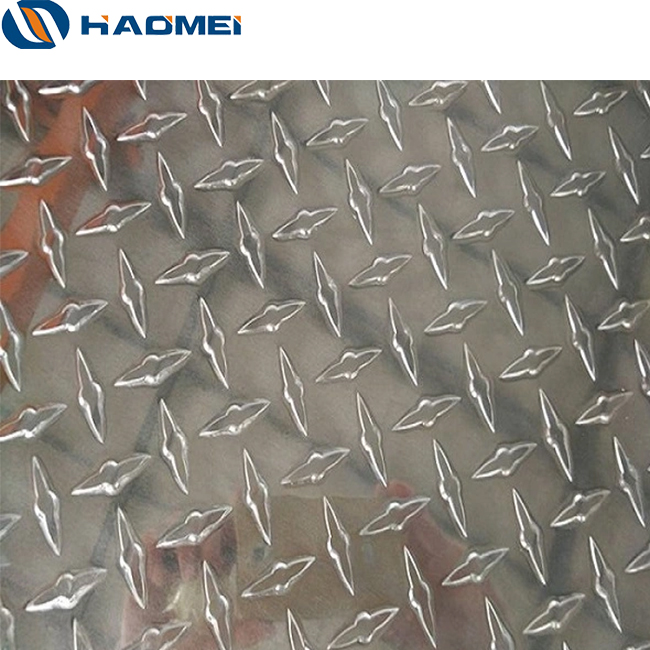

    Aluminium chequered plate 5754 has good corrosion resistance and hardness. It’s used in anti-slip purposes, and it carries weight in certain circumstances like ships and train compartments, van flooring etc.

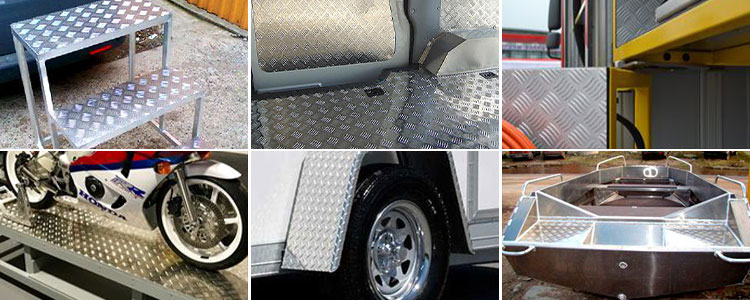

    5754 aluminium tread plate application
