Color Coated Aluminium

» Color Coated Aluminium

    • 3003 color coated aluminum coil

    CATEGORY AND TAGS:
    Color Coated Aluminium , ,

    3003 color coated aluminum coil falls on the Al-Mn alloy featured by good formability, corrosion resistance and weldability. The paints for aluminium 3003 colored coil in China include PE (polyester), PVDF ( Fluorocarbon) and PET. The coating method can be powder coating or spraying coating. 3003 coated aluminum coil rolls find their applications in various fields.

    enquiry
    • Specifications
    • Features
    • Application
    • Price

    3003 color coated aluminum coil falls on the Al-Mn alloy featured by good formability, corrosion resistance and weldability. The paints for aluminium 3003 colored coil include PE (polyester), PVDF ( Fluorocarbon) and PET. The coating method can be powder coating or spraying coating. 3003 coated aluminum coil rolls find their applications in decorative curtain wall panels, indoor aluminum ceiling gussets, roof color aluminum tiles, aluminum gutters, shutters, rolling doors, lighting products, bus skins, silos, furniture etc.

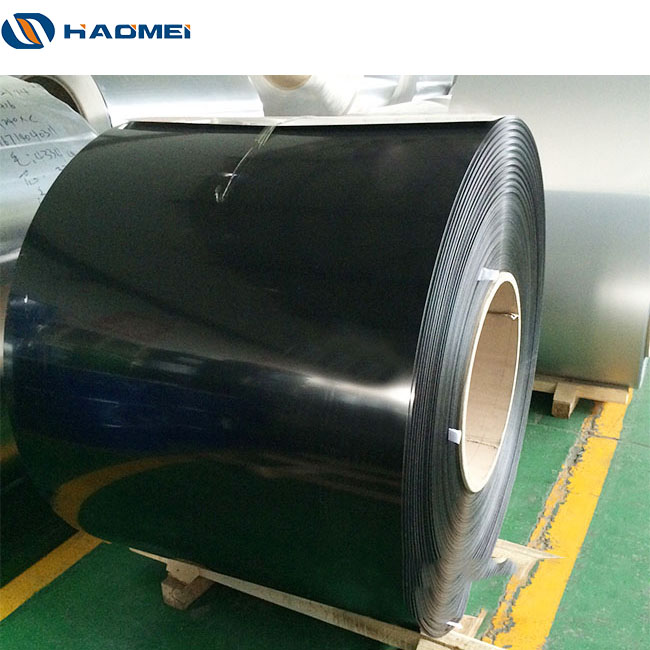

    aluminium 3003 colored coil rolls in Haomei workshop

    Specifications of 3003 color coated aluminium coil

    Alloy Temper Thickness Width Coating Thickness Application
    3003 H24, H26 0.5-1.2mm 200-1300mm 25-28 um ceiling
    3003 H24 0.6-1.5mm 55-1600mm 25-28 um roofing
    3003 H24 0.3-0.6mm 300-500mm 15-18 um Rain gutter
    3003 O, H 0.3-2.0mm 20-1600mm 15-28um Other



    Colors white, gray, red, brown, blue, green, black etc.
    Width error ±0.2mm
    Protective film Transparent film, or a film with customized trademark
    Inner diameter 505mm, 405mm, customized
    Packaging 405mm and 505mm inner diameter horizontal packaging, customized
    Lead time 15-25 working days
    After sales service 7*24 hours available

    Features of 3003 coated aluminum coil

    1. Good tensile strength. The tensile capacity of 3003 aluminum coil is generally around 160-170mpa in the H24 state, which is about 20% higher than that of the 1060 and 1100 aluminum coil series.

    2. Good corrosion resistance. PE or PVDF coating lasts decades without decaying.

    3. Cost efficient. China 3003 color coated aluminum coil is only a little more expensive than coated aluminium coil of 1000 series, but stronger in hardness and anti-rust ability.

    packaging of 3003 color coated aluminium coil

    Application of aluminium 3003 colored coil

    3003 colored aluminium coil is applied to the production of aluminum alloy ceiling: aluminum alloy strip gusset plate, aluminum alloy punching plate, aluminum alloy grille, hanging piece (vertical curtain), etc. The product complies with the standard of GB3880-97 or ASTM3004. It can also be made into roofing panels and rain gutters which are lighter in weight, more durable in color, and longer in service life than steel.

    applications of 3003 coated aluminum coil

    The price of aluminium 3003 colored coil varies from time to time. Please contact us for a quotation.
