    Typical alloy: 2024 aluminum sheet coil

    Material status: F、O、T3、T4、T6、T73、T351、H112 etc,.

    Thickness (mm): 1.0-500

    Width (mm): 800-2650

    Length (mm): 500-16000

    enquiry
    • Specifications
    • Properties
    • Application

    Technical Parameters

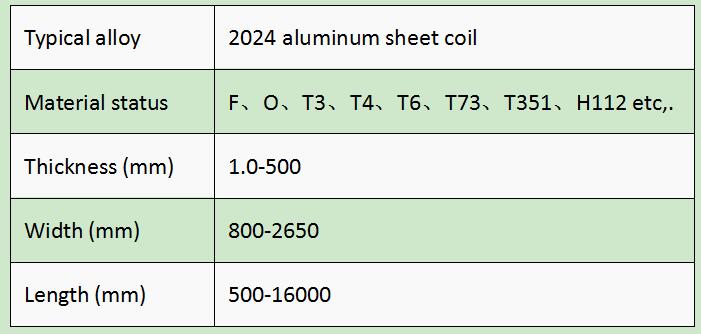

    2024 alloy parameter

    Aluminum sheet 2024 is made of an aluminum-copper alloy with high strength-to-weight ratio, used for truck and aircraft wheels, aircraft fusilage components, truck suspension parts and so on. 2024 alloy does have limited weldability, and it is less corrosion resistant than other alloys.

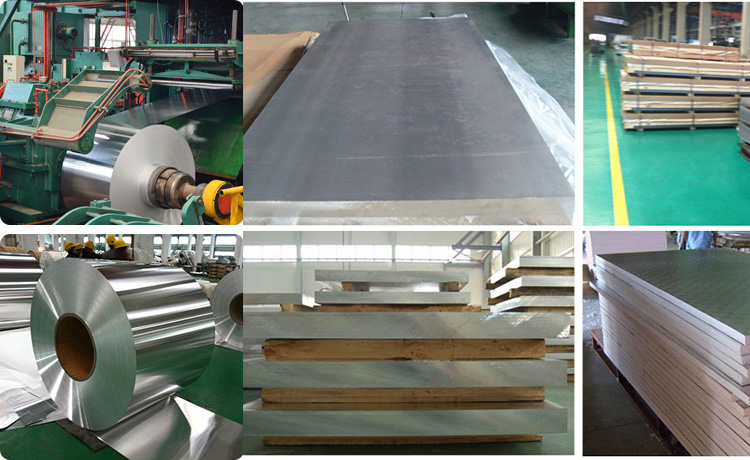

    2024 aluminum sheet

    2024 aluminum plate is a typical hard aluminum alloy in the Al-Cu-Mg system, feature by reasonable composition and good comprehensive performance. Required in many countries, 2024 aluminum coil sheet ranks top in demand quantity in hard aluminum. The alloy is characterized by high strength and a certain heat resistance, and can be used as a working part below 150 °C. 2024 aluminum alloy, density is 2.85 g/cm3.

    Chemical Composition

    Silicon: 0.5% Iron: 0.5% Copper: 3.8-4.9 Manganese: 0.3-0.9 Magnesium: 1.2-1.8 Chromium: 0.10 Nickel:- Zinc: 0.25 Ti: 0.15 Other: 0.15 Aluminium: Remaining

    Mechanical Properties

    As a kind of high-strength hard aluminum, aluminum sheet 2024 can be heat-treated and strengthened.

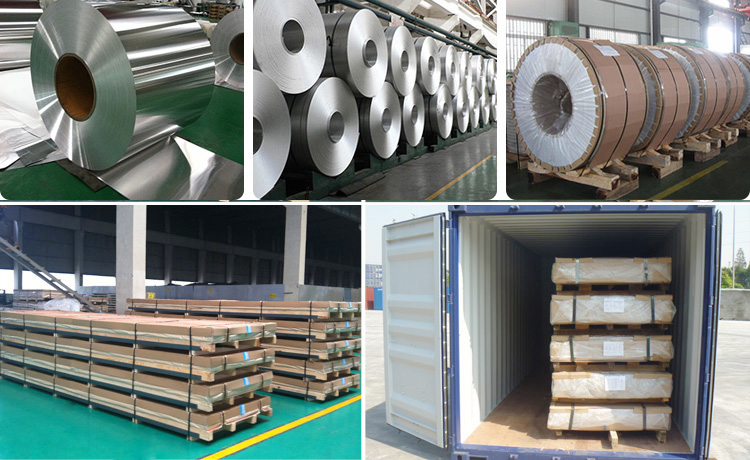

    2024 aluminum coil sheet packaing

    Plasticity: medium plasticity in quenching and quenching state

    Welding: good spot welding, and there is a tendency to form intergranular cracks during gas welding.

    Machinability: good after quenching and cold hardening but low after annealing

    Corrosion resistance: low, and anodizing or color coating is often used to improve the corrosion resistance.

    2024 aluminum plate is mainly used to make various high-load parts and components (but not stamping forgings) such as skeleton parts, skins, partitions, ribs, spars, rivets and other working parts below 150 °C.
